Reorganizing a Modeled Database

Reorganization of modeled databases proceeds in much the same manner as a DASDL update. The following WFL job performs the reorganization for the LIVEDB and TESTDB databases by increasing the length of Z in data set Q from 12 to 20 characters:

?BEGIN JOB REORGANIZE/BOTHDBS;
%
%   REORGANIZE LIVEDB
%
COMPILE LIVEDB WITH DASDL;
COMPILER DATA
   UPDATE;
   OPTIONS (AUDIT);
   D DATA SET (K NUMBER(6)) AREAS = 100;
   S SET OF D KEY K;
   Q DATA SET (Z ALPHA(20)) PACK = TESTPACK;
   AUDIT TRAIL (KIND = TAPE, DUPLICATED ON TAPE);
?%----- END LIVEDB DASDL -----
RUN SYSTEM/BUILDREORG;
FILE DASDL (TITLE = DESCRIPTION/LIVEDB);
DATA CARD
  $ NOZIP
UPDATE;
?%----- END BUILDREORG INPUT -----
COMPILE REORGANIZATION/LIVEDB WITH DMALGOL LIBRARY;
COMPILER FILE CARD (KIND = DISK,
                    TITLE = DATABASE/REORGSYMBOLIC);
COMPILER FILE DASDL (TITLE =
                     DESCRIPTION/REORGANIZATION/LIVEDB);
RUN REORGANIZATION/LIVEDB;
%   REORGANIZE TESTDB
COMPILE TESTDB WITH DASDL;
COMPILER DATA
   MODEL LIVEDB;
   UPDATE;
   OPTIONS (AUDIT);
   CONTROL FILE (PACK = TESTPACK);
   D DATA SET (K NUMBER(6)) PACK = TESTPACK;
   S SET OF D KEY K PACK = TESTPACK;
   Q DATA SET (Z ALPHA(20)) PACK = TESTPACK;
?%----- END TESTDB DASDL -----
RUN SYSTEM/BUILDREORG;
FILE DASDL (TITLE = DESCRIPTION/TESTDB);
DATA CARD   $ NOZIP UPDATE;
?%-----END BUILDREORG INPUT -----
COMPILE REORGANIZATION/TESTDB WITH DMALGOL LIBRARY;
COMPILER FILE CARD (KIND = DISK,
                    TITLE = DATABASE/REORGSYMBOLIC);
COMPILER FILE DASDL (TITLE =
                     DESCRIPTION/REORGANIZATION/TESTDB);
RUN REORGANIZATION/TESTDB;
?END JOB.

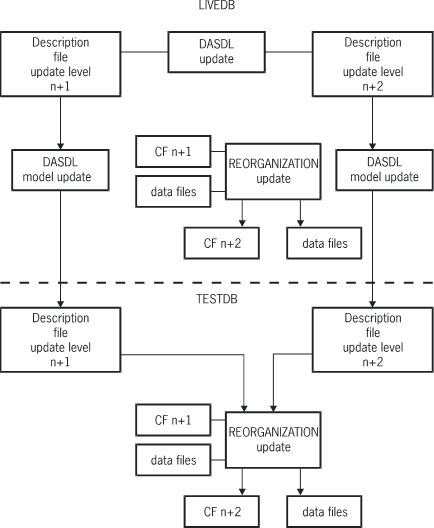

Figure 15–2 illustrates the reorganization process performed by the previous WFL job.

Figure 16. The Reorganization Process

The Reorganization Process


The reorganization information from the n+2 description file of the LIVEDB database was copied in the n+2 description file of the TESTDB database by the DASDL compiler during the modeling operation. When a MODEL option is present, the DASDL compiler generates a syntax error for any Reorganization cards found in the DASDL source.
