Chassis Configurations for a 2-Socket, 18-Core EPP

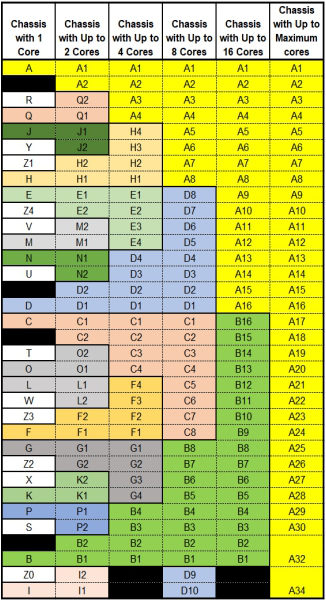

Chassis Configurations for a 2-Socket, 18-Core EPP shows the possible partition chassis configurations of an EPP with two processor sockets and 18 processor cores per socket.

Figure 22. Chassis Configurations for a 2-Socket, 18-Core EPP

Chassis Configurations for a 2-Socket, 18-Core EPP


Maximum Memory per Partition (Gigabytes)

Note that the following table assumes a memory configuration equal to the architectural limit of the system: that is, 24 DIMM slots populated with 64GB DIMMs.

A: 1536

B: 768

C: 512

D: 256

E: 256

F: 256

G: 256

H: 128

I: 128

J: 128

K: 128

L: 128

M: 128

N: 128

O: 128

P: 64

Q:64

R:64

S: 64

T: 64

U: 64

V: 64

W: 64

X: 64

Y: 64

Z0: 64

Z1: 64

Z2: 64

Z3: 64

Z4: 64

Two Examples of Valid Combinations of Partition

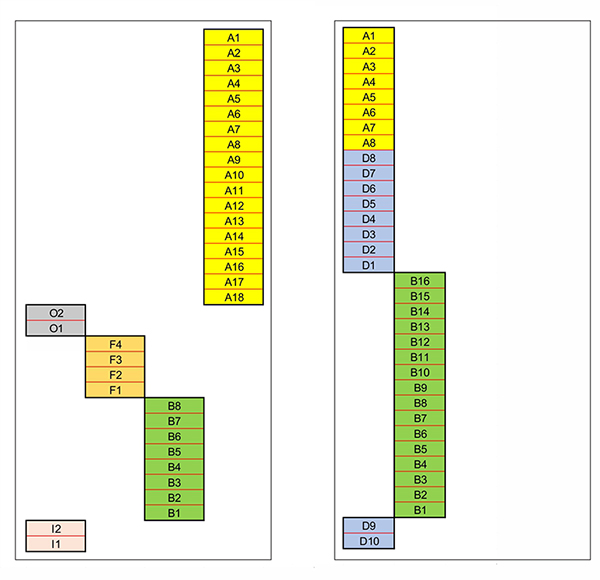

The example on the left has two 2-core partitions, one 4-core partition, one 8-core partition, and one 18-core partition. The example on the right has one 8-core partition, one 10-core partition, and one 16-core partition.
