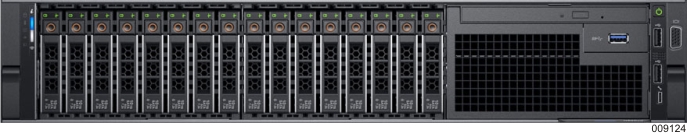

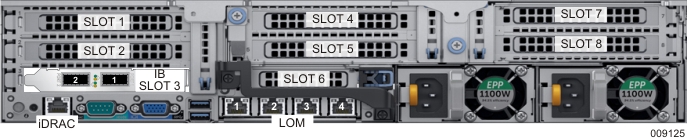

2-Socket (12- or 18-Core) Enterprise Partition Platform (Front View) illustrates the front of the 2-socket (12- or 18-core) enterprise partition platform; 2-Socket (12- or 18-Core) Enterprise Partition Platform (Rear View) illustrates the rear of the 2-socket (12- or 18-core) enterprise partition platform.
The platform AC power and power supply ratings are as follows.
Platform Config. | Power Supply Output Wattage | Frequency | Voltage | Total Server Actual Current | Total Heat Dissipation | Maximum Inrush Current | Dual AC Input |
|---|---|---|---|---|---|---|---|
2-Socket 128 GB Mem 2 Disks | 1100 W | 50/60 Hz auto-ranging | 100 – 240 V | 12-Core: 1.9 A at 208 V | 12-Core: 395 W (1348 BTU/h) | 55 A | Yes |
18-Core: 2.7 A at 208 V | 18-Core: 566 W (1931 BTU/h) |
Note: The operational voltage range is 200 – 240 VAC.
The dimensions and weight are as follows.
Dimensions | Weight | |
|---|---|---|
Width | 43.41 cm (17.09 in.) | 26.3 kg (57.98 lb.) |
Depth | 67.87 cm (26.72 in.) | |
Height | 8.69 cm (3.42 in.) | |
