Chassis Configurations for a 2-Socket, 12-Core EPP

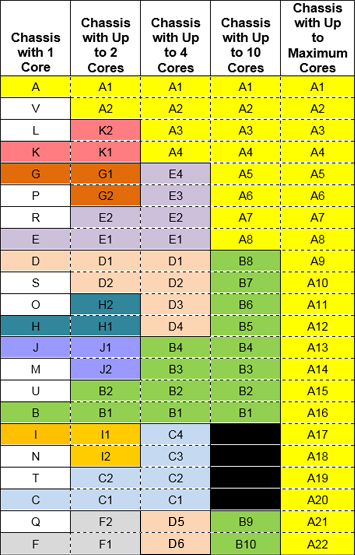

Chassis Configurations for a 2-Socket, 12-Core EPP shows the possible partition chassis configurations of an EPP with two processor sockets and 12 processor cores per socket.

Figure 21. Chassis Configurations for a 2-Socket, 12-Core EPP

Chassis Configurations for a 2-Socket, 12-Core EPP


Maximum Memory per Partition (Gigabytes)

Note that the following table assumes a memory configuration equal to the architectural limit of the system: that is, 24 DIMM slots populated with 64GB DIMMs.

A: 1536

B: 768

C: 512

D: 256

E: 256

F: 256

G: 256

H: 128

I: 128

J: 128

K: 128

L: 64

M: 64

N: 64

O: 64

P: 64

Q:64

R:64

S: 64

T: 64

U: 64

V: 64

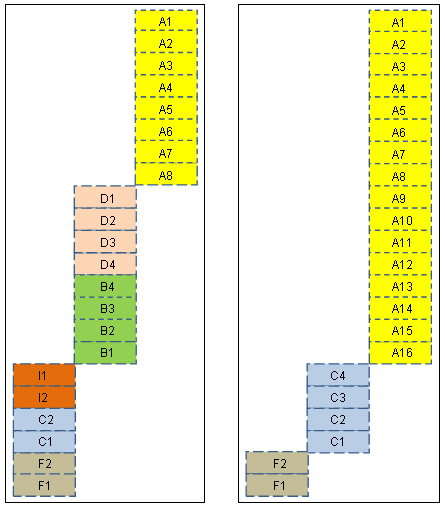

Two Examples of Valid Combinations of Partition

The example on the left has three 2-core partitions, two 4-core partitions, and one 8-core partition. The example on the right has one 2-core partition, one 4-core partition, and one 16-core partition.
