Chassis Configurations for a 2-Socket, 14-Core EPP

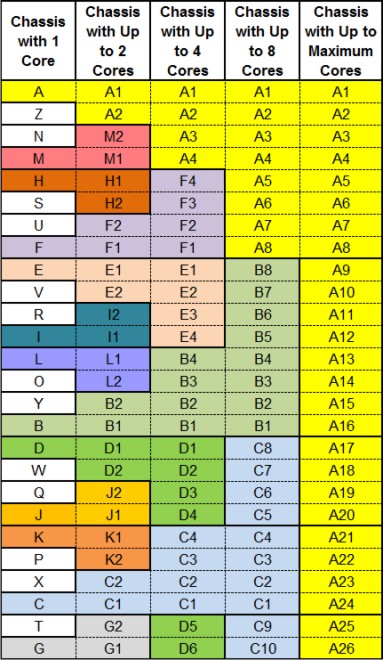

Chassis Configurations for a 2-Socket, 14-Core EPP shows the possible partition chassis configurations of an EPP with two processor sockets and 14 processor cores per socket.

Figure 27. Chassis Configurations for a 2-Socket, 14-Core EPP

Chassis Configurations for a 2-Socket, 14-Core EPP


Maximum Memory per Partition (Gigabytes)

Note that the following table assumes a memory configuration equal to the architectural limit of the system: that is, 24 DIMM slots populated with 64GB DIMMs.

A: 1536

B: 512

C: 640

D: 384

E: 256

F: 256

G: 128

H: 128

I: 128

J: 128

K: 128

L: 128

M: 128

N: 64

O: 64

P: 64

Q:64

R:64

S: 64

T: 64

U: 64

V: 64

W: 64

X: 64

Y: 64

Z: 64

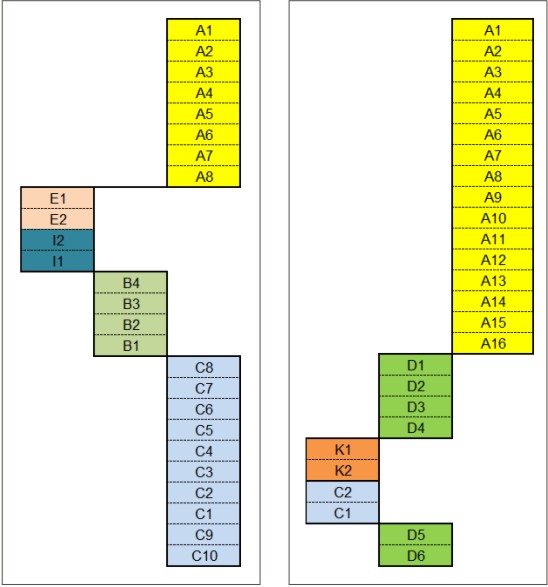

Two Examples of Valid Combinations of Partition

The example on the left has two 2-core partitions based on Chassis-E and Chassis-I, one 4-core partition based on Chassis-B, one 8-core partition based on Chassis-A, and one 10-core partition based on Chassis-C.

The example on the right has two 2-core partitions based on Chassis-C and Chassis-K, one 6-core partition based on Chassis-D, and one 16-core partition based on Chassis-A.
