The next three tables show the initial connection sequence between the Operations Sentinel server and the interface software. The logic is the same for SINGLEPOINT (the production instance of the interface software) and SINGLEPOINTTEST program (the test instance of the interface software), so only SINGLEPOINT is shown in these tables.

Normal, fault-free logic flow is shown by solid line arrows .

Abnormal or contingency logic is shown as logic blocks separated by dashed lines (— — — —).

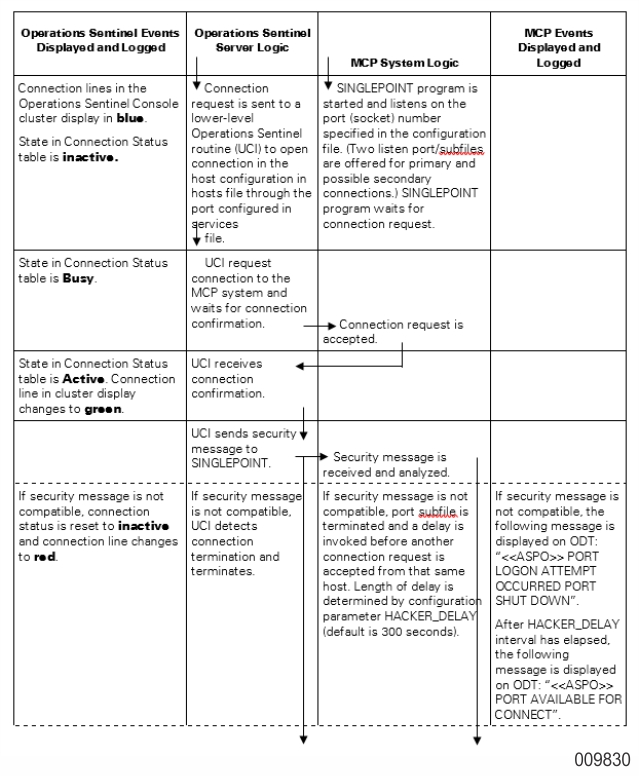

Table B-3 shows the first part of the initial connect sequence.

Table B.3. Initial Connection Sequence (Part 1)

Table B-4 shows the second part of the initial connect sequence.

Table B.4. Initial Connection Sequence (Part 2)

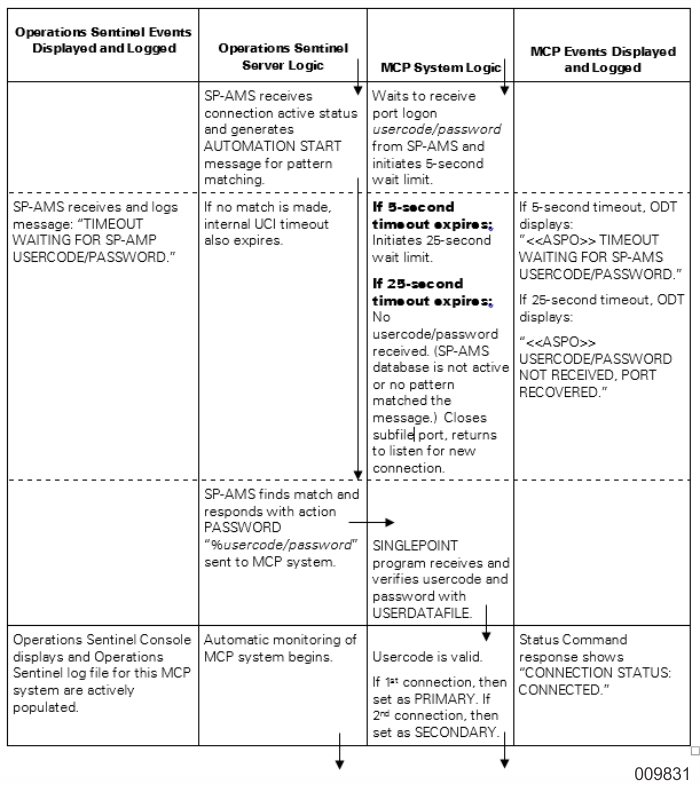

Table B–5 shows the last part of the initial connection sequence.

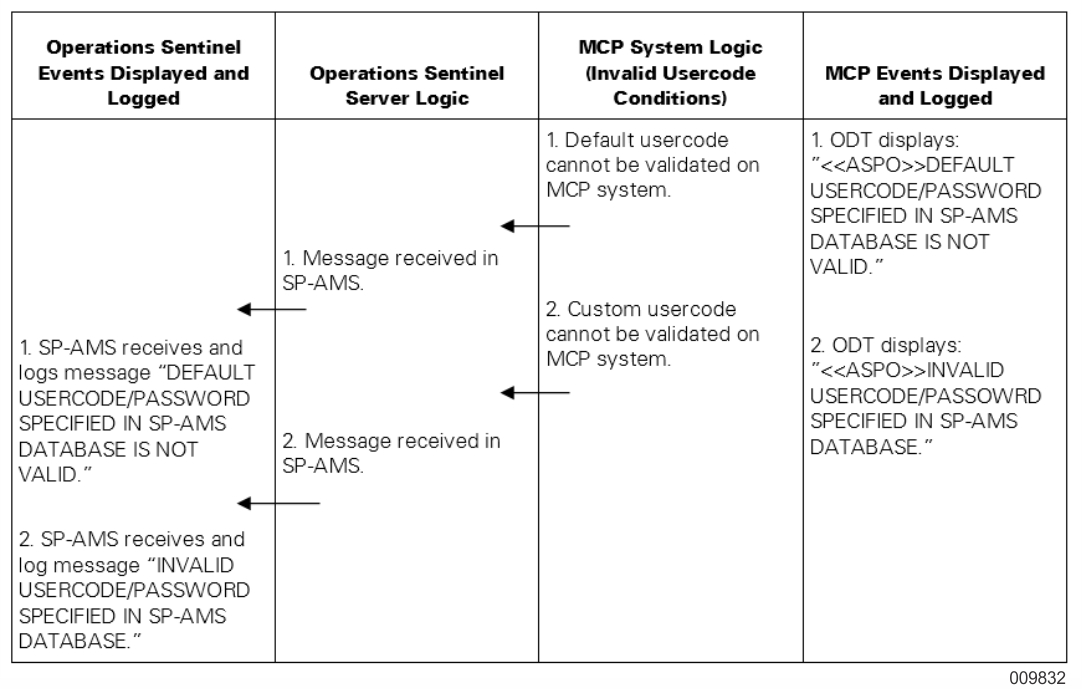

Table B.5.  Initial Connection Sequence (Part 3)
