Purpose of Alert Recipient Client

This example sets up the client to receive notification of alert events from the Event Server. Events might be sent as well as received by a single client. Refer to Section [xref text to replace] for other details which could be incorporated into this program.

Code

using System;
using Spo.SPDlib;
using System.Windows.Forms;
namespace ExamplesOfAPIUsage
{
    class MyAlertPrgram
    {
        // create a SPD class instance
        static SPD m_spd = new SPD();
        // Additional class member attributes declaration...
        [STAThread]
        static void Main(string[] args)
        {
            // Initialize the API.
            // Application name = "alert recipient example"
            // No application qualifier.
            m_spd.SPDInitClient("alert recipient example", null);
            // Register a callback to handle alert events.
            // No passback data is specified.
            m_spd.SPDHandleEvent(SPD.SPD_eventType.SPD_alarmEvent,
               new SPD.SPD_eventCallback(alarmEventCB), null);
            // Client enters event processing
            Application.Run();
        } // function: Main
        // Callback which handles alert events
        static void alarmEventCB(SPD.SPD_eventType type, 	// event type
                      SPD.SPD_event this_event, 	// event info
                      object passback)
        {
            // Handle alert events
            if (type == SPD.SPD_eventType.SPD_alarmEvent)
            {
                SPD.SPD_alarmEvent alert = (SPD.SPD_alarmEvent)this_event.eventData;
                // Display data that is common to all events
                string.Format("class={0}  name={1}  appl={2}  applqual={3}
                   severity={4} id={5}  qual={6}  text={7}", this_event.objectClass,
                   this_event.objectName, this_event.applicationName,
                   this_event.applicationQualifier, alert.severity.ToString(),
                   alert.alarmIdentifier, alert.alarmQualifier, alert.alarmText);
            } // alert event
            else
            {
                // If client only registered for alert event report, this is an
                // error case, and may want to have error recovery steps.
                // If client registered for multiple event reports with the same
                // callback function, process other event types
            } // not alert event
        } // function: alarmEventCB
    } // class: MyProgram
}// namespace: ClientSampleProgram

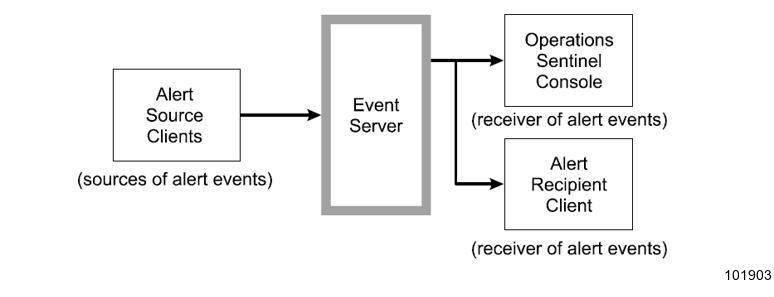

Data Flow Diagram

This illustration shows the flow of information for the alert recipient client.
