Purpose of Object Modifier Client

This example shows how a client can send attribute changes to the Event Server. This client does not request notification of events.

Code

using System;
using Spo.SPDlib;
namespace ExamplesOfAPIUsage
{
    class MyAlertPrgram
    {
        // Additional class member attributes declaration.
        [STAThread]
        static void Main(string[] args)
        {
            // create a SPD class instance
            SPD m_spd = new SPD();
            string[] attr = new string[1];
            string[] value = new string[1];
            attr[0] = "MYATTR";
            value[0] = "myvalue";
            // Initialize the API.
            // Application name = "Object Modifier example"
            // No application qualifier.
            m_spd.SPDInitClient("Object Modifier example", null);
            // Client processing...
            // Report the change in value of an attribute being monitored by
            //      the client:
            //      The class is "disk".
            //      The instance is "disk01".
            //      The host on which the instance resides is "HOST1".
            //      The application name and qualifier are set to NULL.  This
            //      causes the default values to be used (i.e., "Object Modifier"
            //      for the name and NULL for the qualifier).
            //      No timestamp.
            //      One attribute is being updated.  Its name (from the attr
            //      array) is "MYATTR" and its new value (from the value array)
            //      is "myvalue".
            m_spd.SPDReportValue("disk", "disk01", "HOST1", null, null, null, 1,
               attr, value);
            // More processing of client events...
            // No event processing required if events are only sent, but not
            // received.
            Console.Read();
        } // function: Main
    } // class: MyProgram
}// namespace: ClientSampleProgram

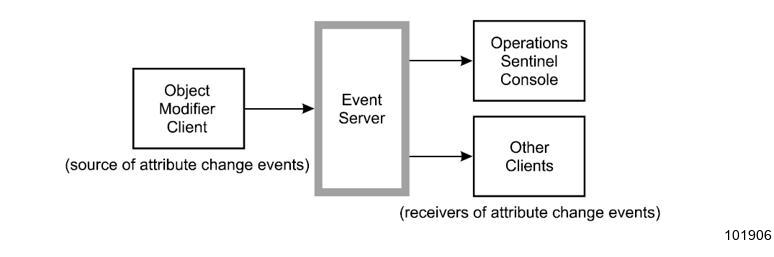

Data Flow Diagram

This illustration shows the flow of information for the Object Modifier client.
